产品参数
| Bands | ADS-B |
| Bandpass Min Frequency | 1086MHz |
| Bandpass Max Frequency | 1094MHz |
| Maximum Insertion Loss | 0.5dB |
| VSWR | ≤1.2 |
| Maximum Power | 20Watts |
| Out-of-band Rejection | ≥75dB@100-1060MHz ≥75dB@1120-2700MHz |
| Surface Finish | black |
| Port Connectors | N-Type |

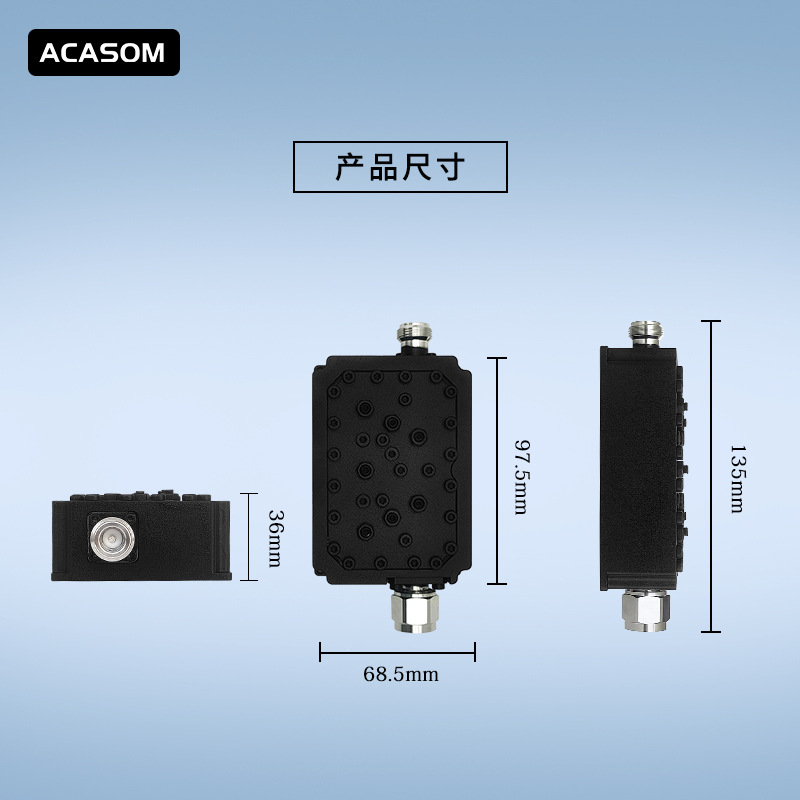

| Size | 97.5*68.5*36 |
| Net Weight | 0.4Kg |
