DETAILED PERFORMANCE SPECIFICATIONS
| Parameter | Specification |
|---|---|
| Model Reference | ACA-ANT60702RHCP-A1 (Assumed from description) |

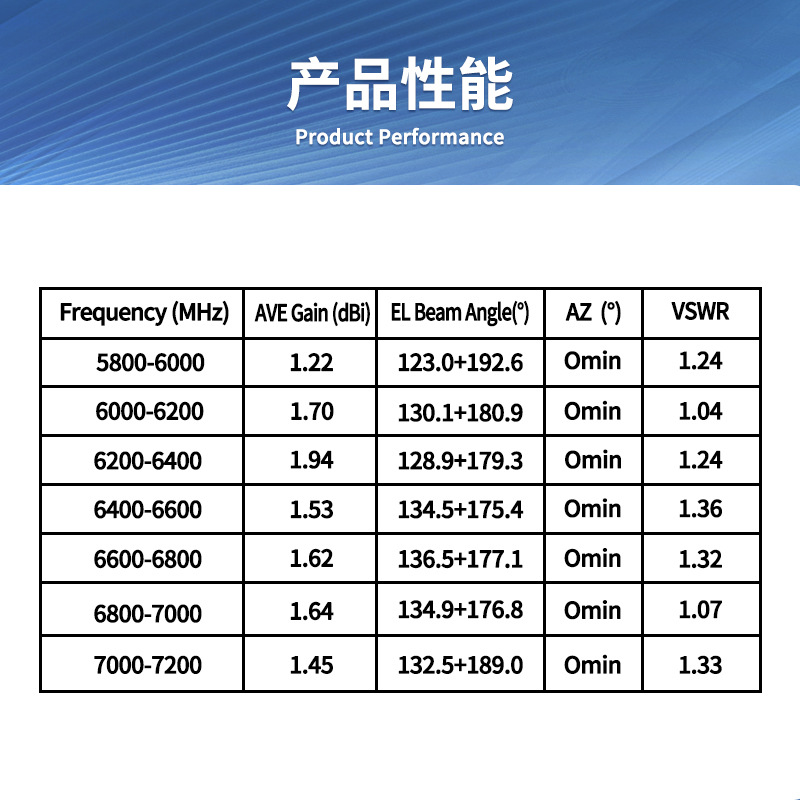

| Frequency Range | 5800 - 7200 MHz |
| Average Gain | ~1.2 - 1.9 dBi (Approx. 2 dBi nominal) |
| Polarization | Right-Hand Circular (RHCP) |

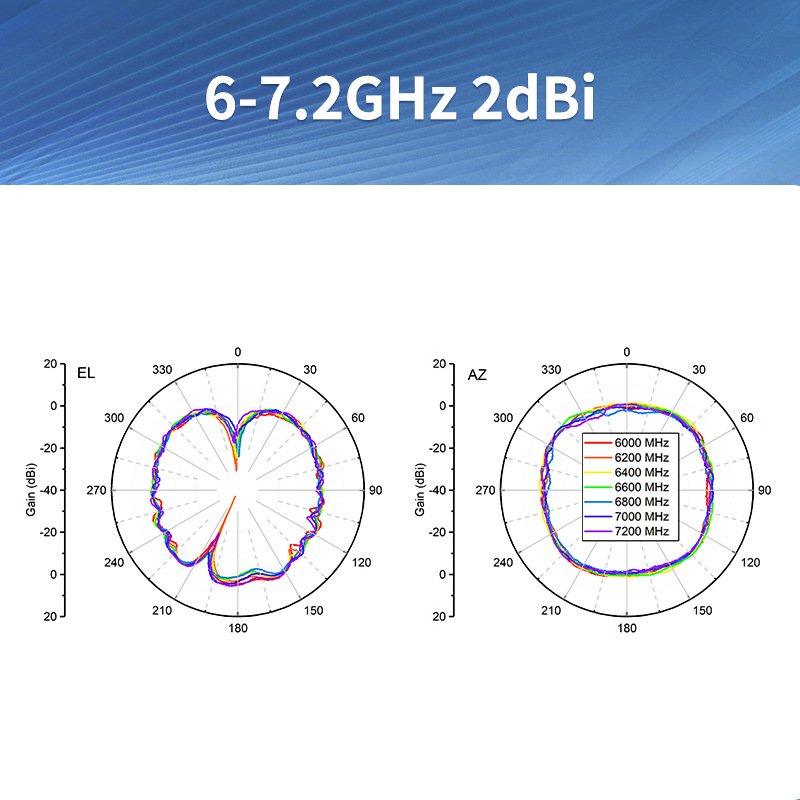

| Horizontal Beamwidth | 360° (Omnidirectional) |
| Vertical Beamwidth | ~123° - 192° (Wide elevation coverage) |

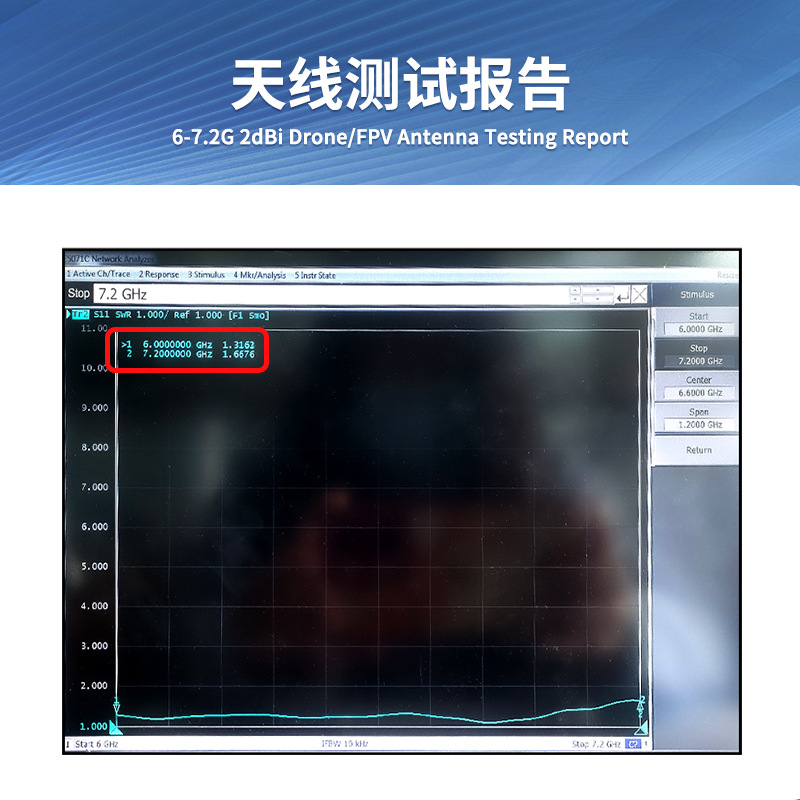

| VSWR | < 1.5 (1.04 typical at 6000-6200MHz) |
| Efficiency | ≥ 90% |
| Impedance | 50 Ω |
| Power Handling | 30 W |
| Connector | SMA-Male |
| Dimensions (Dia. x H) | ~40 x 100 mm |
| Weight | 17 g |
产品描述

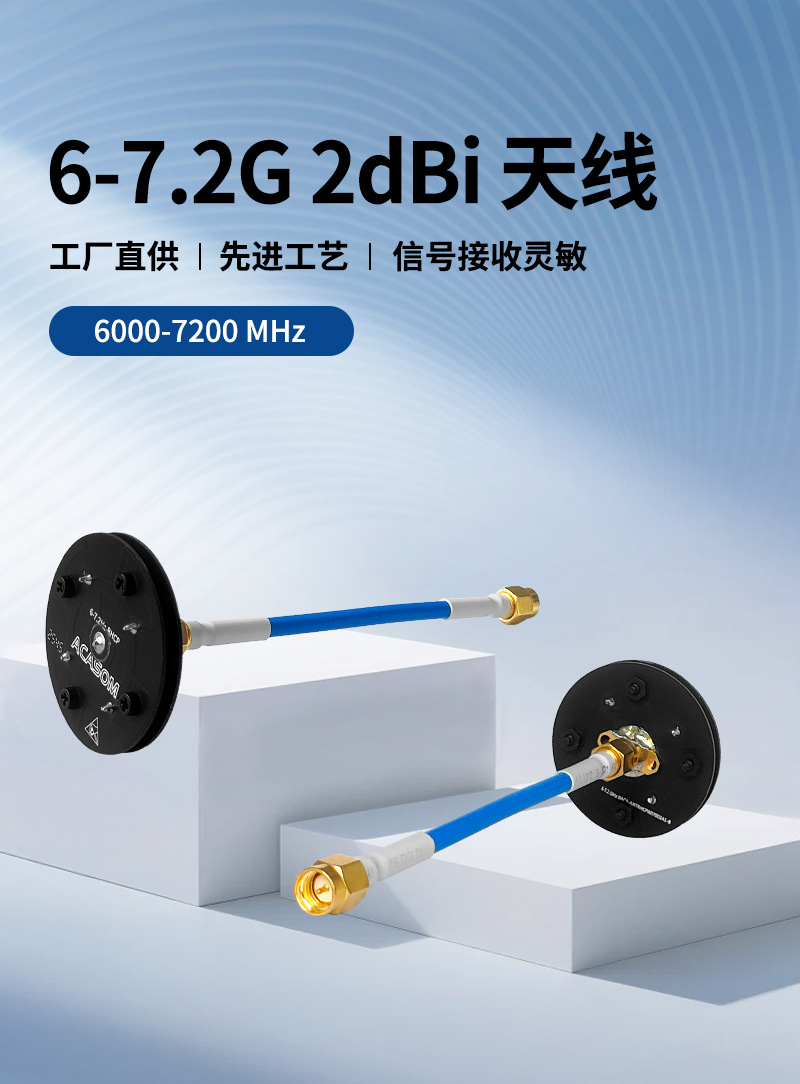

借助ACASOM6-7GHz RHCP天线，确保您的无人机或FPV系统具备可靠的全向连接能力。此天线可在5800-7200MHz频段内运行，提供稳定且增益较低的(-2Bi)水平波束特性，从而消除了对**指向的需求。其关键特性在于右旋极化，这显著降低了多路径干扰和因反射而导致的信号衰减-一此类情况在复杂环境中较为常见。结合宽达120的垂直波束宽度以及优异的VSWR<1.5性能，这款轻便型天线(是维持飞行器在特定位置进行操控与视频链接时的稳定性的理想解决方案)。
