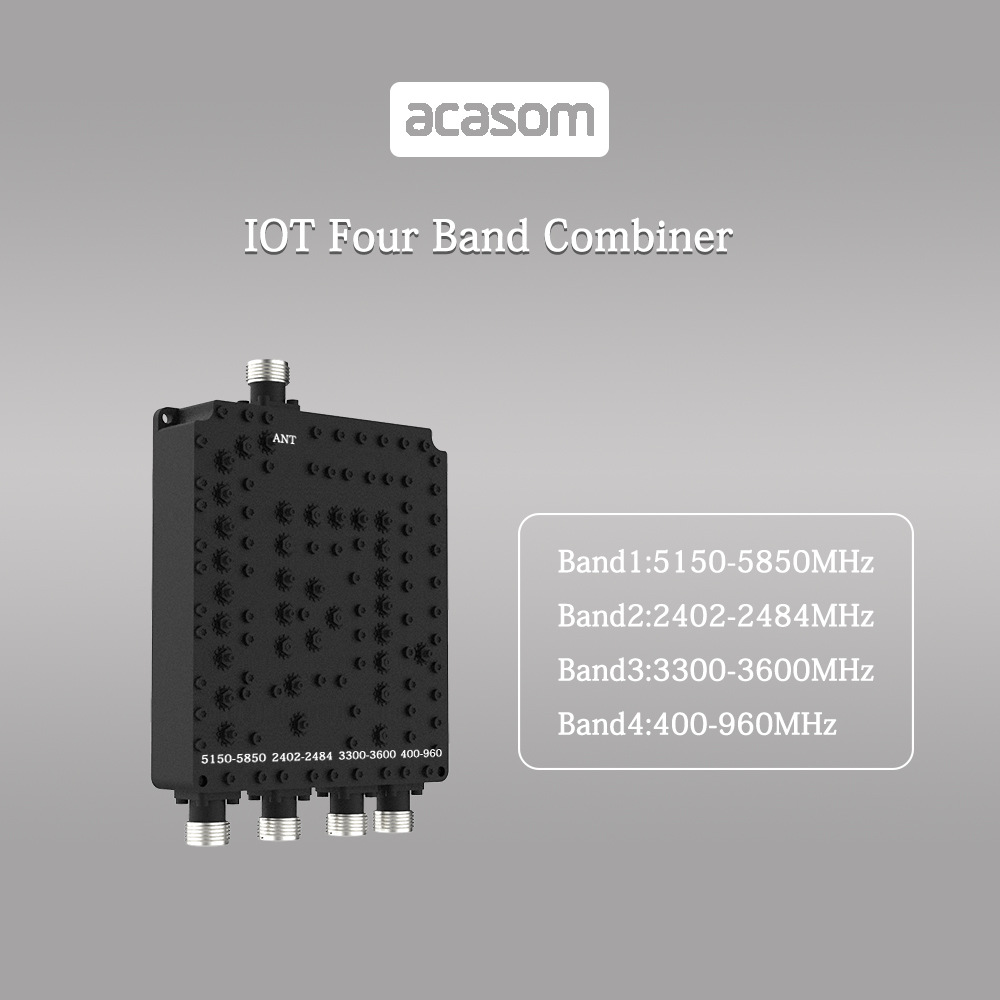

Band width(MHz)

560

84

300

700

Insertion Loss(dB)

≤0.2

≤0.2

≤0.3

≤0.3

Ripple(dB)

≤0.2

≤0.2

≤0.2

≤0.2

VSWR

≤1.3

≤1.3

≤1.3

≤1.3

DC Pass

Yes

No

No

No

Out of band Rejection

(dB)

≥85@other three band

≥85@other three band

≥85@other three band

≥85@other three band

Maximum Power

(W)

≥20

Impedance(Ω)

50

Port Connectors

N-Female

DC Voltage

24/48V(400-960MHz Port)

Surface Finish

Black

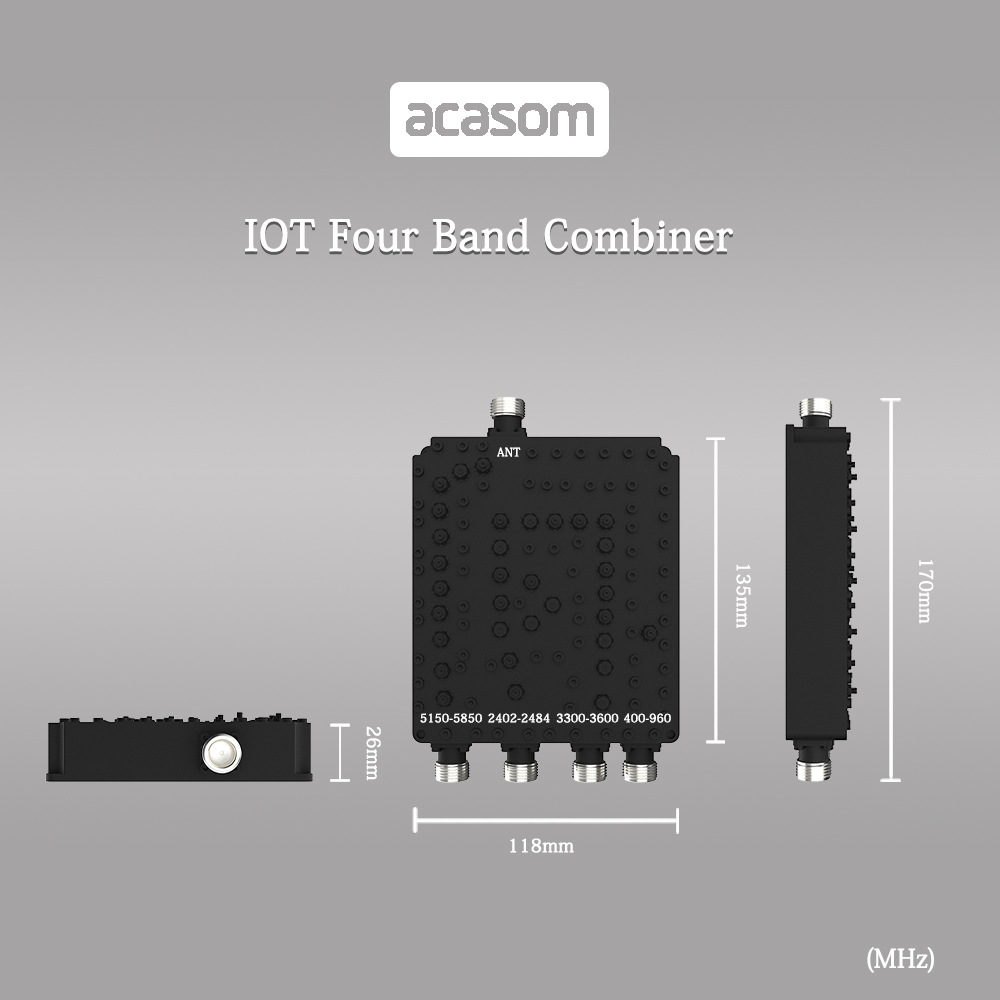

Size

170*118*26mm

Weight

0.82Kg
