Band width(MHz)

20

20

Insertion Loss(dB)

≤1.0

≤1.0

Ripple(dB)

≤0.2

≤0.2

VSWR

≤1.3

≤1.3

Out of band Rejection

≥90@2462-2482

≥90@2402-2422

Maximum Power(W)

≥20

Impedance(Q)

50

Port Connectors

N-F

Surface Finish

Black

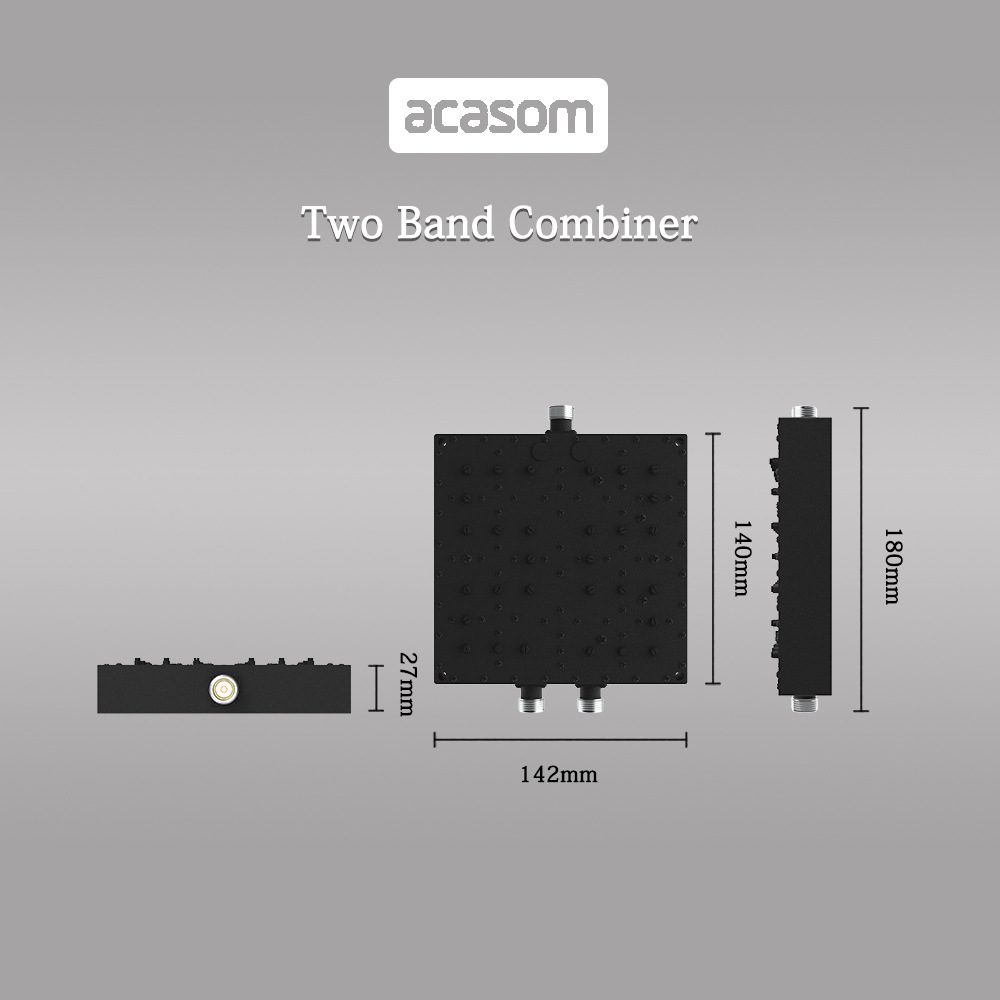

Size

180*142*27mm

Weight

0.72Kg
